Magnatech Quicklamp 432 433 Orbital Weld Heads for Multi-Pass Pipe Welding

The Magnatech Quickclamp weld heads are designed to make pipe-to-pipe and pipe-to-fitting welds. They are “full function” – with the capability of reproducing all the precise motions of a skilled welder. A continuously adjustable clamp eliminates the need to interchange components when changing pipe sizes. Simply slip the head over the pipe and clamp with a toggle lever. The Quickclamp heads improve productivity by increasing duty cycle, reducing repair rates, and producing welds of consistent quality.

Applications:

  • Fossil Power Plant Construction/Maintenance
  • Steam Generation Equipment Fabrication
  • Nuclear Power Plant Construction/Maintenance
  • Shipyard Construction
  • Fabrication Shops
  • Chemical/Petrochemical Facility Construction and Maintenance
  • Process Piping
Features:

  • Multipass welding of tubes/pipes in all gravity positions
  • Use economical standard 1 kg (2 lb.) wire spools
  • Push button clutch for rapid cable unwind
  • Heat tolerant steel bearings and chain drive
  • Waterproof Carry Case/Tool Kit standard
  • Socket Welding Kit and Tilt AVC option for angled torch applications
  • Water-Cooled Torch uses standard expendables

Specifications:


Quickclamp Model 432
Quickclamp Model 433
Application
Multi-pass orbital GTAW pipe-to-pipe, pipe-to-fitting
Multi-pass orbital GTAW pipe-to-pipe, pipe-to-fitting
Pipe (tube) OD size range
25 – 89 mm (1.0” – 3.5”)
60 – 168 mm (2.375” – 6.625”)
Filler wire module

Wire size: 0.8, 0.9, 1.0 mm (.030, .035, .040”)

Max. speed capability: 2540 mm/min. (100 IPM)

Wire size: 0.8, 0.9, 1.0 mm (.030, .035, .040”)

Max. speed capability: 2540 mm/min. (100 IPM)

Arc gap control module
13 mm (0.5”) stroke. Additional mechanical adjustment allows welding heavier wall pipe
13 mm (0.5”) stroke. Additional mechanical adjustment allows welding heavier wall pipe
Torch propulsion module
0.1 – 1.8 rpm
0.05 – 0.9 rpm
Oscillation module

Max. oscillation stroke amplitude: 16 mm (0.625”)

Max. oscillation speed: 1520 mm/min. (60 IPM)

Oscillation dwell: 0 – 1 second

Cross seam adjustment: ± 6.4 mm (± 0.25”)

Max. oscillation stroke amplitude: 16 mm (0.625”)

Max. oscillation speed: 1520 mm/min. (60 IPM)

Oscillation dwell: 0 – 1 second

Cross seam adjustment: ± 6.4 mm (± 0.25”)

Water-cooled torch
200 A continuous
200 A continuous
Torch adjustment capability

Torch lead/lag adjustment: ± 15 degrees (manual)

Torch tilt adjustment: ± 10 degrees (manual)

Torch lead/lag adjustment: ± 15 degrees (manual)

Torch tilt adjustment: ± 10 degrees (manual)

Power supply compatibility
Pipemaster 515, Pipemaster 516
Pipemaster 515, Pipemaster 516

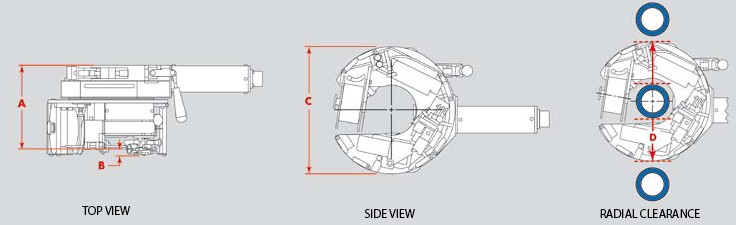

Dimension and weights:


Quickclamp Model 432
Quickclamp Model 433
Weight5.9 kg (13.0 lb.)
8.1 kg (17.8 lb.)
Axial Clearance (Torch Centerline to Rear Extremity) (A)
158 mm (6.24”)
158 mm (6.24”)
Axial Clearance (Torch Centerline to Front Extremity) (B)
10 mm (0.41”)
10 mm (0.41”)
Width (C)
241 mm (9.50”)
321 mm (12.63”)
Radial Clearance Requirement (D)
241 mm (9.50”) - Pipe OD 321 mm (12.63”) - Pipe OD
÷ 2 = Radial Clearance ÷ 2 = Radial Clearance
241 mm (9.50”) - Pipe OD 321 mm (12.63”) - Pipe OD
÷ 2 = Radial Clearance ÷ 2 = Radial Clearance
